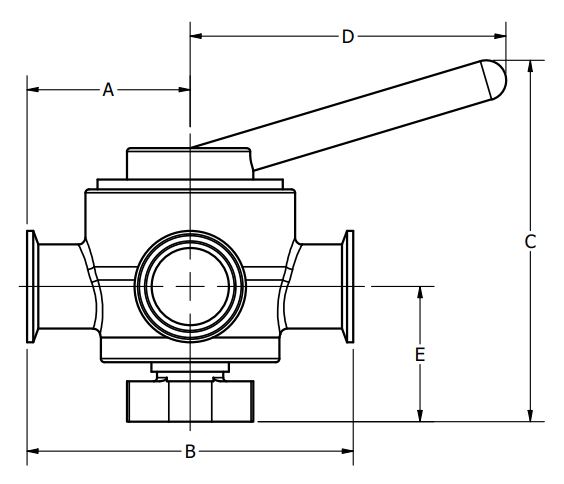

3-Way Plug Valves Clamp

Part Number	TOP-FLO® Ready-To-Go	Size (inches)	A	B	C	D	E
389710-316	Yes	1	2-9/16	4-9/16	5-1/16	4-39/64	2-19/64
389710R-316	Yes	1	2-9/16	4-9/16	5-1/16	4-39/64	2-19/64
389715-316	Yes	1-1/2	2-29/32	5-13/16	6-7/16	5-5/8	2-13/32
389715R-316	Yes	1-1/2	2-29/32	5-13/16	6-7/16	5-5/8	2-13/32
389720-316	Yes	2	3-13/32	6-13/16	7-1/16	5-43/64	2-27/32
389720R-316	Yes	2	3-13/32	6-13/16	7-1/16	5-43/64	2-27/32
389725-316	Yes	2-1/2	4-1/8	8-1/4	8-51/64	5-59/64	3-25/64
389725R-316	Yes	2-1/2	4-1/8	8-1/4	8-51/64	5-59/64	3-25/64
389730-316	Yes	3	4-23/32	9-7/16	9-1/2	7-7/8	3-9/16
389730R-316	Yes	3	4-23/32	9-7/16	9-1/2	7-7/8	3-9/16
