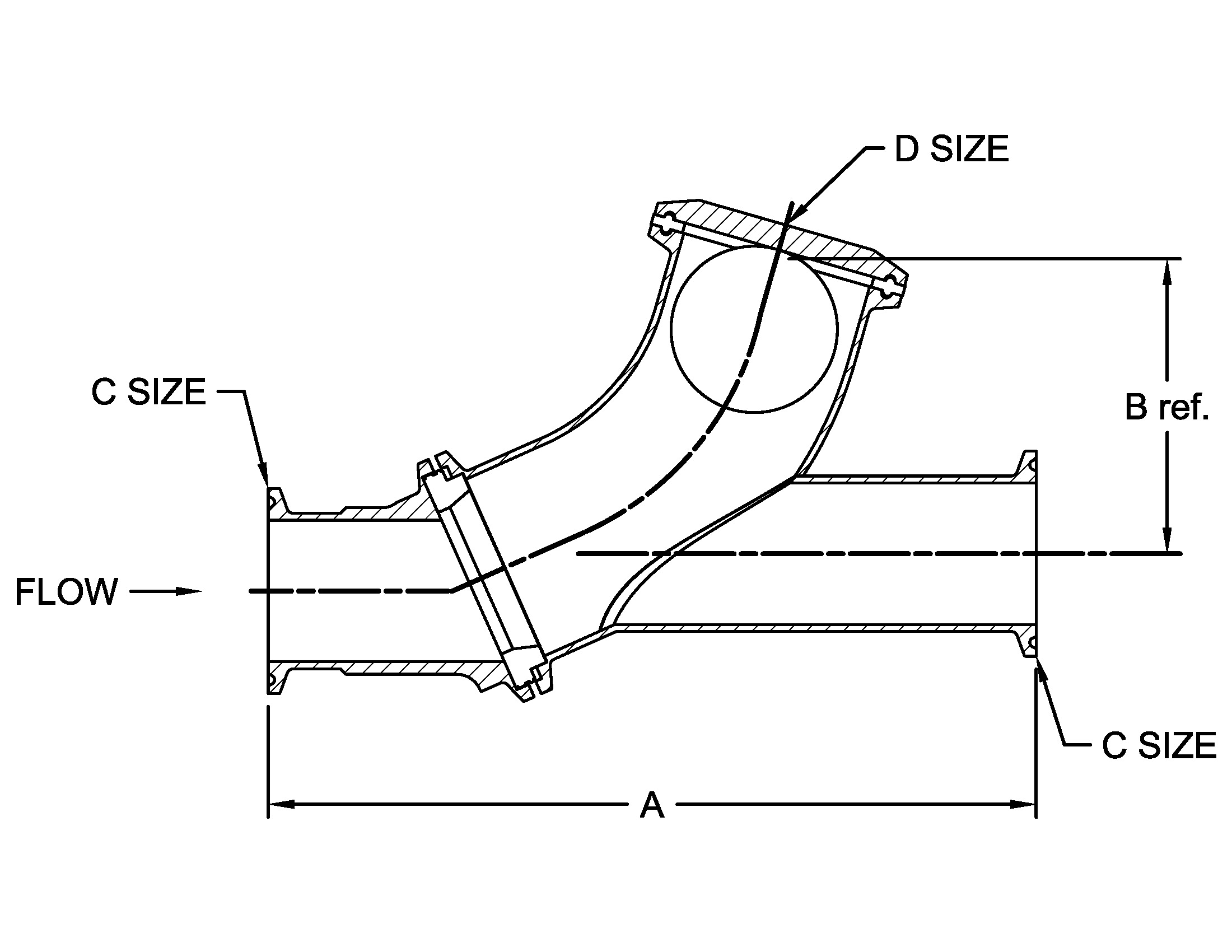

BALL CHECK VALVES
Part Number | Size (inches) | A | B | C Size | D Size | STP File |
---|---|---|---|---|---|---|
45BYMP-1.5 | 1 1/2 | 7.500 | 3.300 | 1 1/2 | 2 | STP |
45BYMP-2 | 2 | 8.500 | 3.900 | 2 | 2 1/2 | STP |
45BYMP-2.5 | 2 1/2 | 10.000 | 4.500 | 2 1/2 | 3 | STP |
45BYMP-3 | 3 | 11.500 | 5.300 | 3 | 4 | STP |
Part Number | Size (inches) | A | B | C Size | D Size | STP File |
---|---|---|---|---|---|---|
45BYMP-1.5 | 1 1/2 | 7.500 | 3.300 | 1 1/2 | 2 | STP |
45BYMP-2 | 2 | 8.500 | 3.900 | 2 | 2 1/2 | STP |
45BYMP-2.5 | 2 1/2 | 10.000 | 4.500 | 2 1/2 | 3 | STP |
45BYMP-3 | 3 | 11.500 | 5.300 | 3 | 4 | STP |
