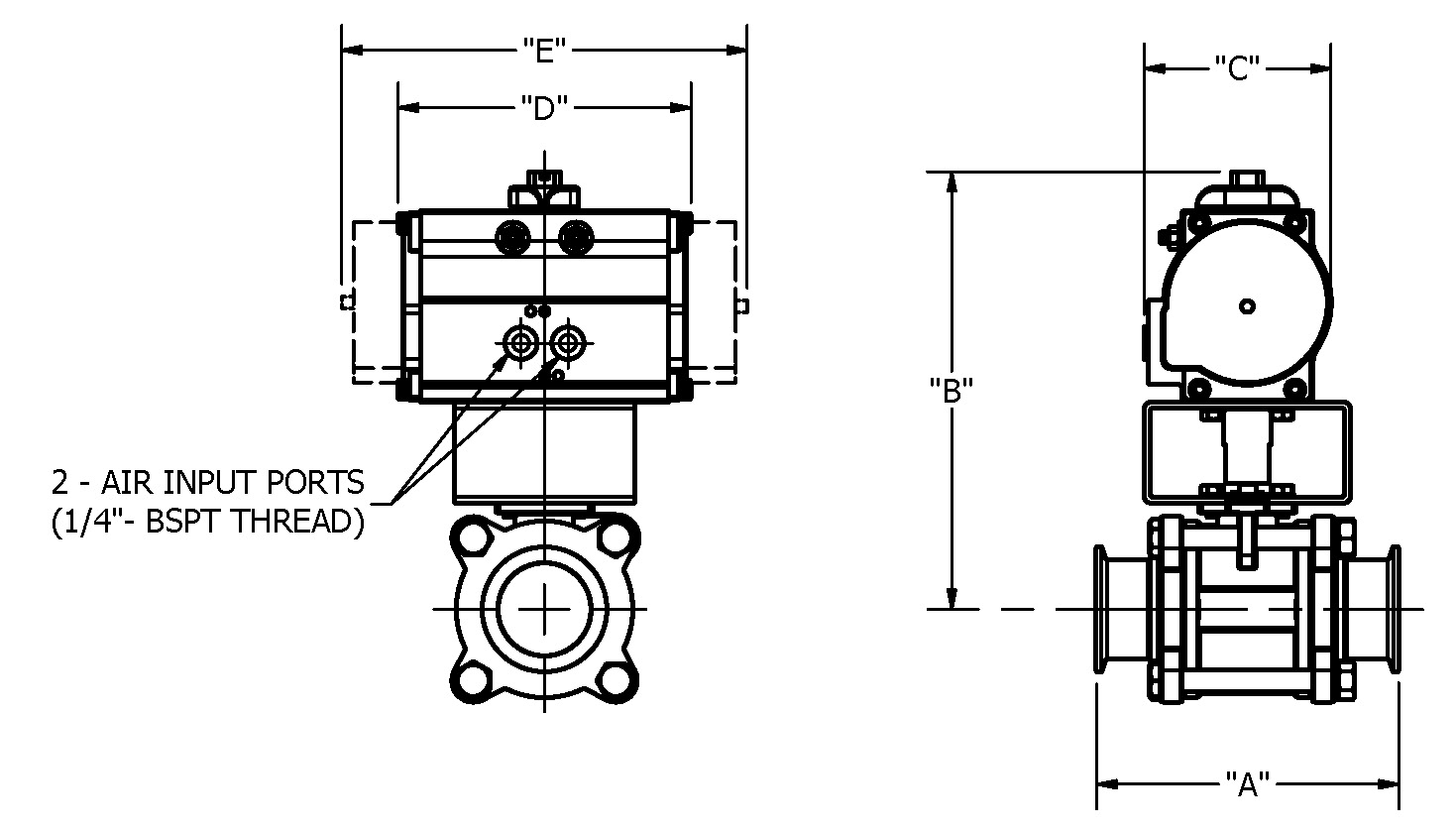

Direct Mount 2-Way Air
Part Number | Size (inches) | A | B | C | D | E |
---|---|---|---|---|---|---|
BLV2C-.50-NC | 1/2 | 3.500 | 6.620 | 2.450 | 4.720 | 7.66 |
BLV2C-.75-NC | 3/4 | 3.980 | 6.810 | 2.450 | 4.720 | 7.66 |
BLV2C-1-NC | 1 | 4.490 | 6.820 | 3.210 | 5.680 | 7.66 |
BLV2C-1.5-NC | 1 1/2 | 5.510 | 8.530 | 3.740 | 5.870 | 8.09 |
BLV2C-2-NC | 2 | 6.140 | 8.830 | 3.740 | 5.870 | 8.09 |
BLV2C-2.5-NC | 2 1/2 | 7.760 | 10.700 | 4.680 | 7.200 | 9.84 |
BLV2C-3-NC | 3 | 9.020 | 10.970 | 4.680 | 7.200 | 9.84 |
BLV2C-4-NC | 4 | 9.570 | 12.980 | 5.530 | 10.220 | 13.97 |
