TOP-FLO® TF-C100 Centrifugal Pumps (3-A)

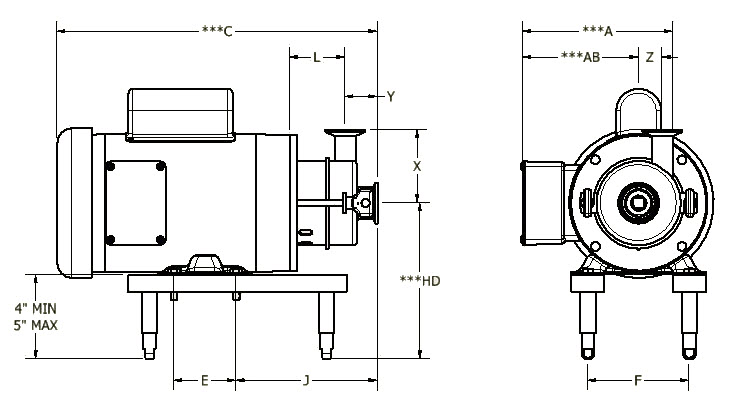

Chart Above:

Seals are std (D) CAR VS. SS and Inlet/Outlet connections are Sanitary clamp

The TOP-FLO^® TF-C100 centrifugal pump is ideal for use in small and medium-size process applications in the dairy, food, beverage, pharmaceutical, and other sanitary process industries.

The C100 Pump has an adapter and backplate made from precision machined stainless steel.  An O-ring on the backplate provides a tight, secure seal with the casing for longer trouble-free operation. Because all of the other C100 Pump components remain the same, existing pumps can be easily retrofitted to the newly designed adapter and backplate.

These small stainless steel centrifugal pumps are part of our larger assortment of pumps and related accessories. They’re another way in which our products make sanitary simple for our customers. Their high quality, combined with our exceptional level of customer service, save time and money while improving operations. In addition, our team of experienced representatives will work with you every step of the way to answer any questions you may have.

• Low Flow
• Low discharge pressure

Features:

Tech Specs

Available Motor Frame Sizes (Sold Separately): 056C

Capacity – 10gpm to 65gpm

Pressure – 23 PSIG / 54 Foot of Head

Viscosity – 200 cp

Temperature – 212° F

• Pump Casing – Circular Type
• Pump Connections – 1 1/2” Inlet x 1” Outlet , Clamp type – Standard
• Pump Construction materials – All Wetted Parts – Type 316L balance Type 304, Carbon Seal, O-Ring & Casting Gasket – FDA Buna
• 3-A Approved
• Pump Finish – 32Ra Standard, Polished or electropolished
• Pump Impeller – Max 3.685” Diameter
• Pump Seal – External Balanced, Sanitary Single Mechanical
