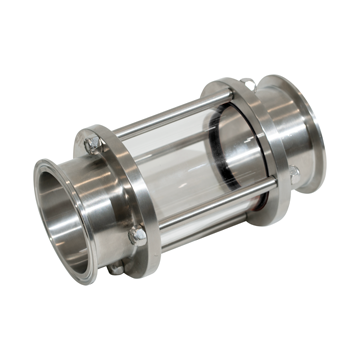

Bolt Style Sight Glass

Part Number	Size (inches)	Length	STP File
54BMPS-1.00-VP-316L	1	5.875	STP
54BMPS-1.50-VP-316L	1-1/2	5.875	STP
54BMPS-2.00-VP-316L	2	5.875	STP
54BMPS-2.50-VP-316L	2-1/2	6.375	STP
54BMPS-3.00-VP-316L	3	7.500	STP
54BMPS-4.00-VP-316L	4	7.625	STP
54BMPS-6.00-VP-316L	6	7.625	STP

Observe the flow of product clearly and precisely through your process lines. Made with borosilicate glass and sealed with FKM gaskets and clamp end connections.

Features:

• 316L SS end connection material

• Finish ID/OD is 32Ra per 3A requirements

• Borosilicate glass viewport

• FDA FKM gasket material

• 304 SS hardware material

• Maximum temperature 250° F (121° C)

• 3A Certified
