38W WELD NECK FLANGE (light duty)

Contact Us

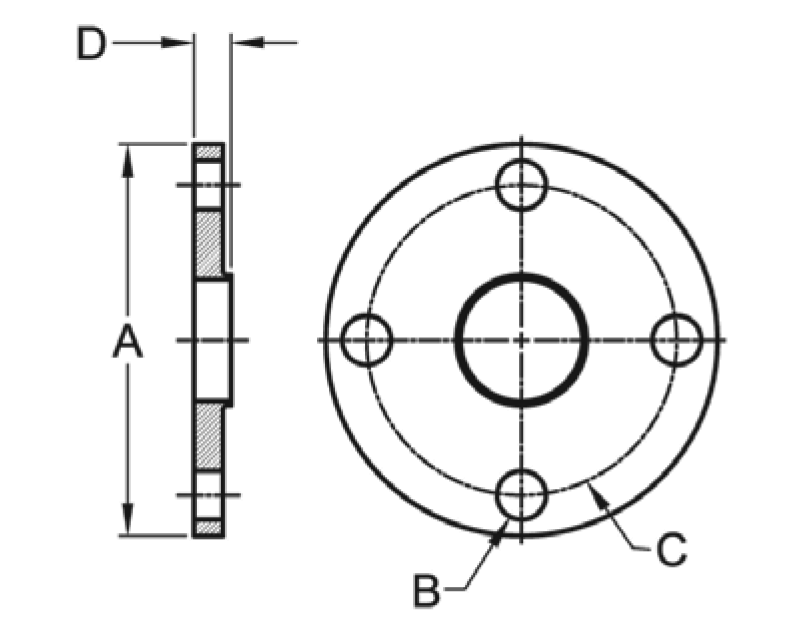

Part NumberSize (inches)ABCD
38W-114.2500.6253.1250.500
38W-1.51 1/25.0000.6253.8750.500
38W-226.0000.7504.7500.563
38W-2.52 1/27.0000.7505.5000.563
38W-337.5000.7506.0000.625
38W-449.0000.7507.5000.625
38W-6611.0000.8759.5000.688
38W-8813.5000.87511.7500.688

Features:

Flange gasket kit available. Flanges are flat face, light duty, 4" and up have 8 bolt holes (150lb bolt hole pattern all sizes)
